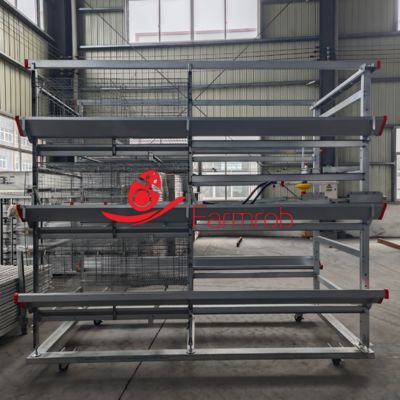

Q235 Wire Poultry Cage System for Rearing Farm
Resumen del producto
Q235 Wire Poultry Cage System for Rearing Farm Developed and designed by Farmrob's expert team, our Q235 Wire Poultry Cage System delivers exceptional performance with optimized operation for superior efficiency and reliability. The robust construction provides outstanding stability and durability, ...
Atributos personalizados del producto
servicios:
Mantenimiento, depuración, capacitación técnica, orientación de instalación
Característica:
Anticorrosión
Altura de la historia:
700 mm
Características:
Sistema automático de abastecimiento, sistema automático de alimentación, sistema automático de vent
Vida útil:
Más de 15 años
Resaltar:
Q235 poultry cage system
,wire poultry rearing cage
,farm battery cage system
Propiedades básicas
Lugar de origen:
Chengdu, China
Nombre de la marca:
Farmrob
Certificación:
ISO9001, CE
Número de modelo:
Tipo jaula automática de H
Documento:
Propiedades comerciales
Cantidad de orden mínima:
200 conjuntos
Precio:
USD 65-200/set
Detalles de empaquetado:
Empaque normal de exportación de 20 pies / contenedor 40HQ
Tiempo de entrega:
60 días
Condiciones de pago:
L/C, T/T
Capacidad de la fuente:
50000 conjuntos por mes
Descripción del producto
Q235 Wire Poultry Cage System for Rearing Farm
Developed and designed by Farmrob's expert team, our Q235 Wire Poultry Cage System delivers exceptional performance with optimized operation for superior efficiency and reliability. The robust construction provides outstanding stability and durability, perfectly suited for demanding poultry farming applications.
Automatic Pullet Cages Specifications
- Dimensions: 1.8m (length) × 0.6m (width) × 0.45m (height)
- Purpose: Designed for raising chicks from 0-105 days
- Mesh Material: Q235 Al-Zn alloy wire (10% Al, 275g/m² Zn coating)
- Comfort Features: Equipped with soft plastic cushion to enhance chick comfort
- Safety: Superior anti-rust performance with no harm to chicks
- Convenience: Spring-loaded cage door for one-handed operation, facilitating vaccination and chicken transfer
Trough Specifications: Made of Al-Zn-Mg alloy plate (coating thickness 275g/m², 11% Al, 3% Mg) with integrated steps positioned behind the trough for easy chick access to feed.
Middle Support: Manufactured using professional laser cutting and bending techniques from 440 Mg-Al-Zn alloy. Features precise dimensions (40mm × 30mm × 40mm) with strong bearing capacity, hard deformation performance, and smooth surface finish.
Adjustable Devices
- Feeding Plate Adjuster: Allows automatic adjustment on both sides of each layer to accommodate poultry at various growth stages. Patented structure ensures consistent height from front to back with minimal error.
- Water Line Regulator: Installed on each tier with 1-3 soft connections to prevent pipe deformation. Uses alloy adjustment components to maintain consistent waterline height across all levels.
Support and Services
Our high-quality, durable cage rearing system is designed to meet all poultry farming needs, backed by comprehensive support:
- Professional installation guidance for smooth system setup
- Regular maintenance and repair services to maintain optimal performance
- Technical troubleshooting for quick resolution of operational issues
- Training and instruction on system usage and poultry management best practices
We are committed to delivering exceptional customer service and support to help your poultry farming business thrive.
